AgNav 5.2.1.20250925

Added

Section titled “Added”
  1. Import of Trimble and JD files

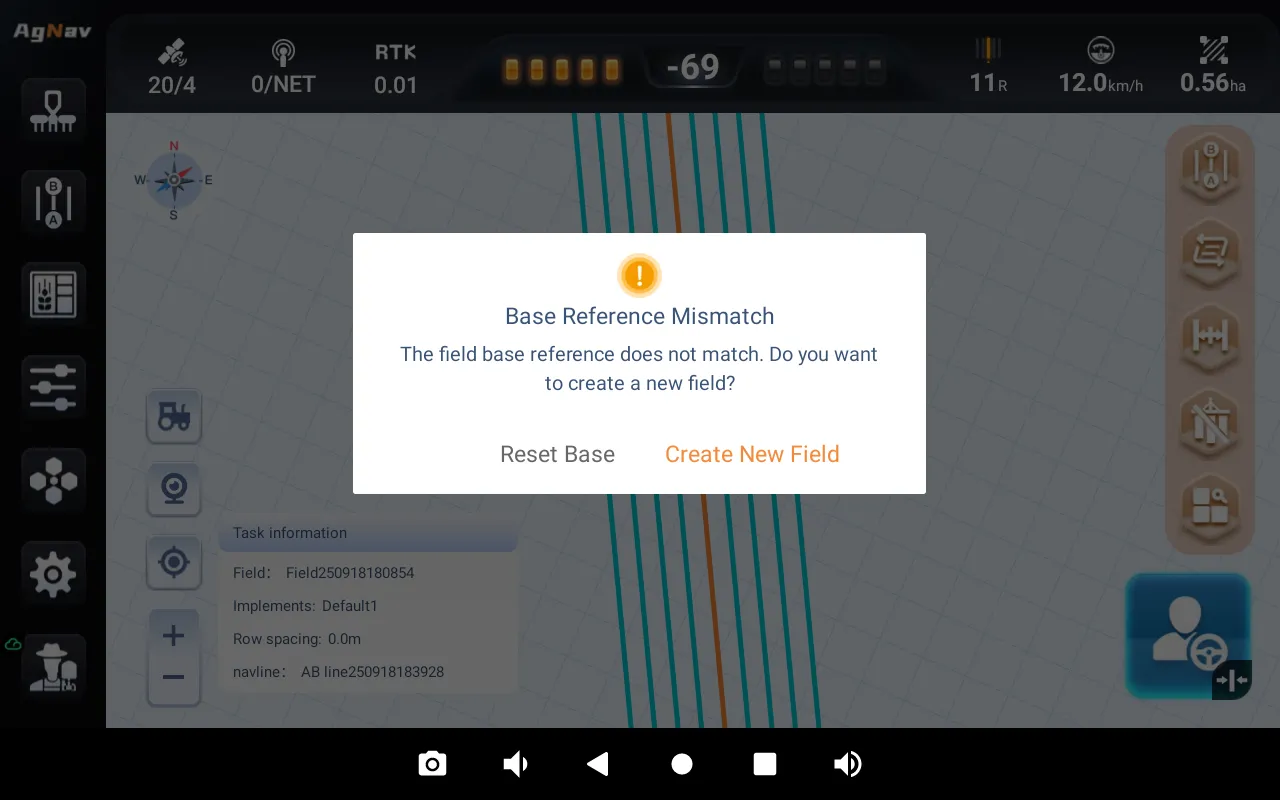

  2. Support prompting to create a new field when the vehicle is detected to be far from the reference point; New Field Prompt.jpg

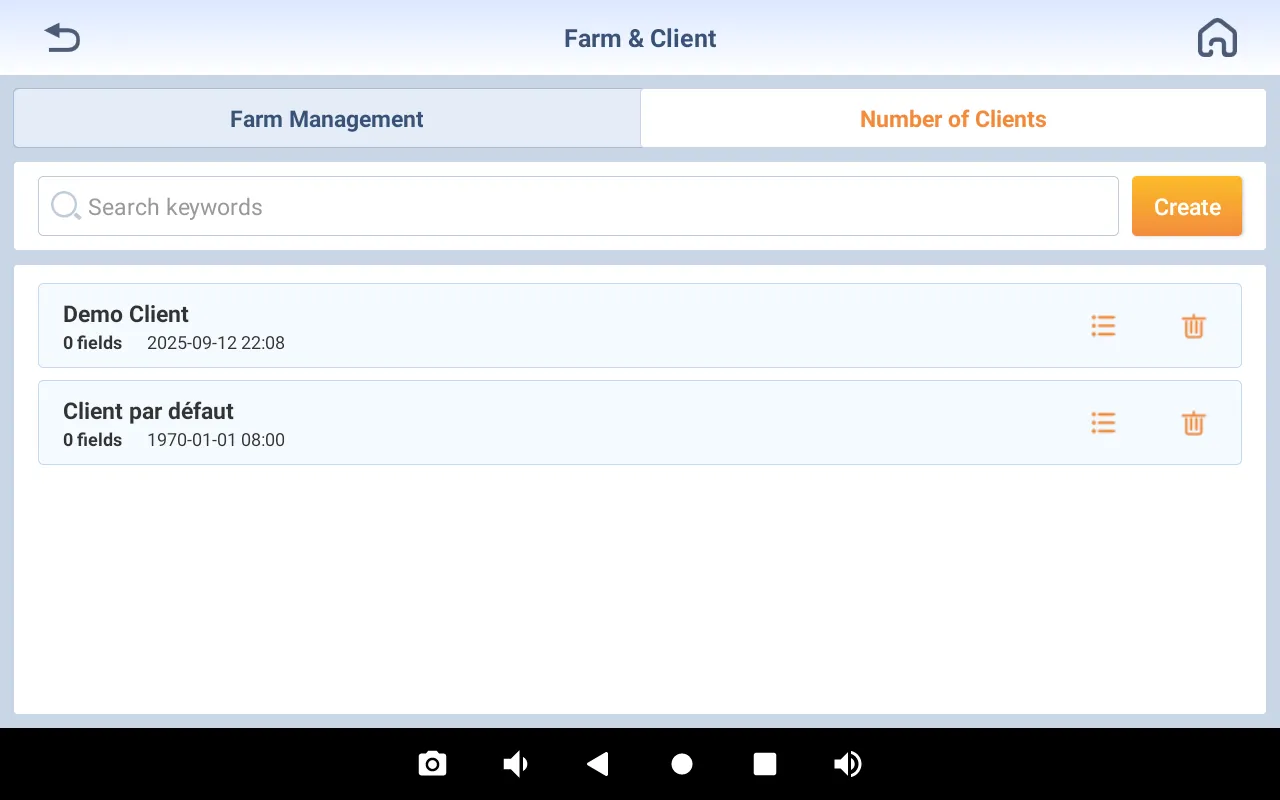

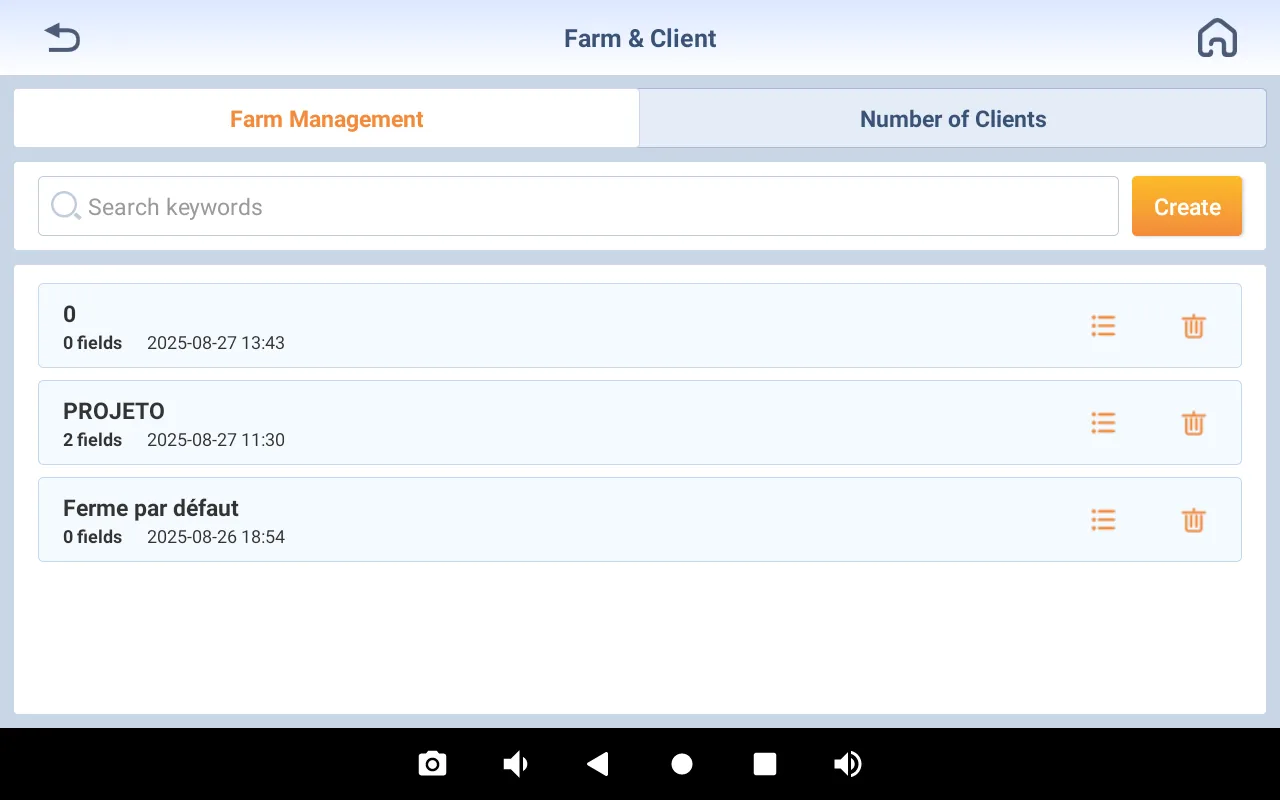

  3. Support farm and customer management; AgNav 5.2.1.20250912.png AgNav 5.2.1.20250912-1.png
  4. Support display and switching of multiple layers such as trajectory, elevation, and speed;
  5. Support default U-turn distance set to half of the implement width;
  6. Support start-to-end alarms for autonomous driving;

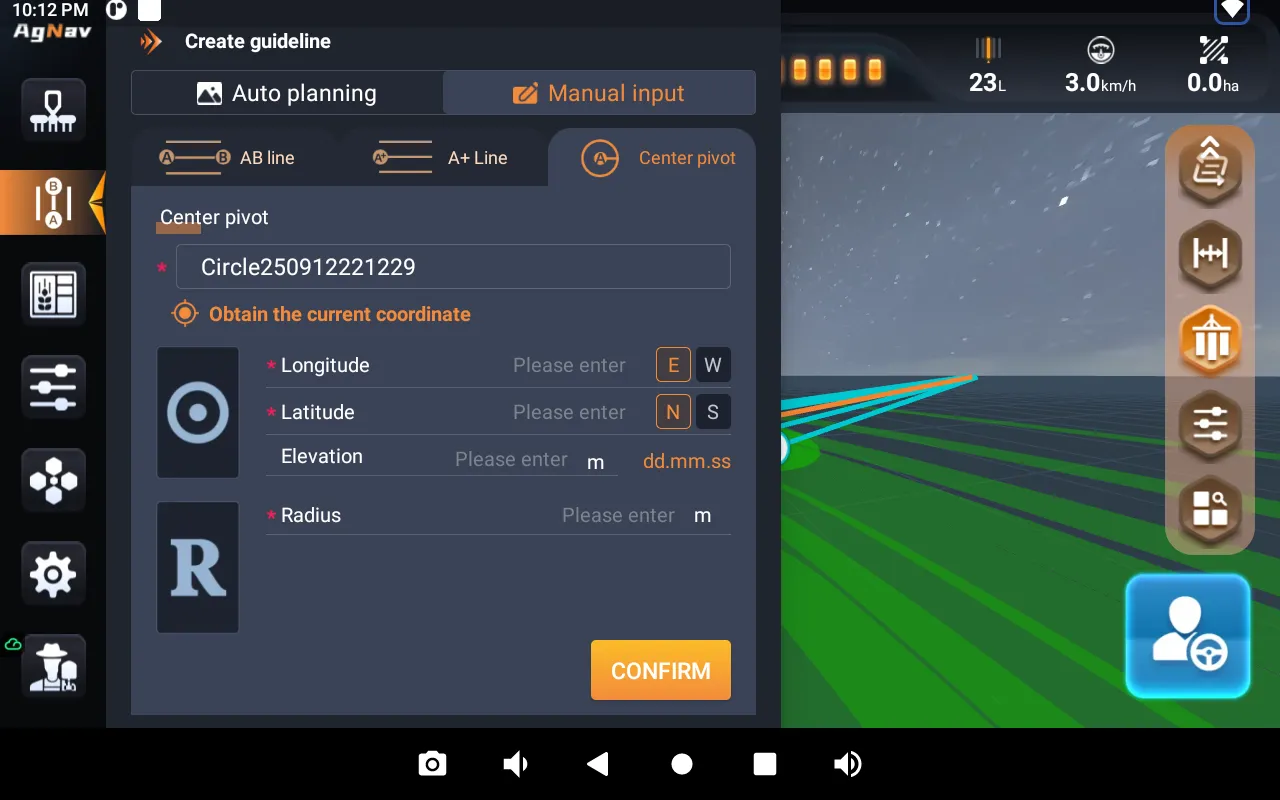

  7. Support manual input of center pivot curve; Pasted image 20250912221251.png

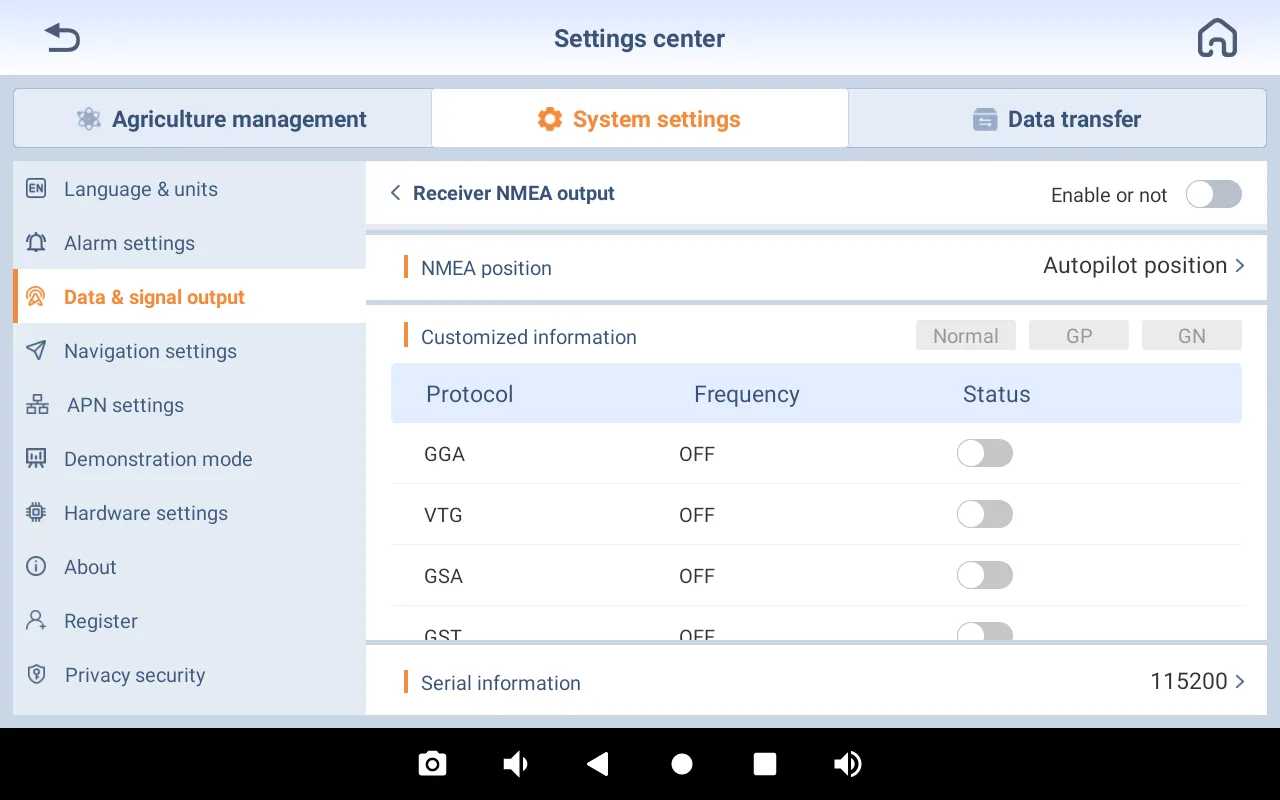

  8. Support main switch for receiver NMEA output; AgNav 5.2.0.20250912.png

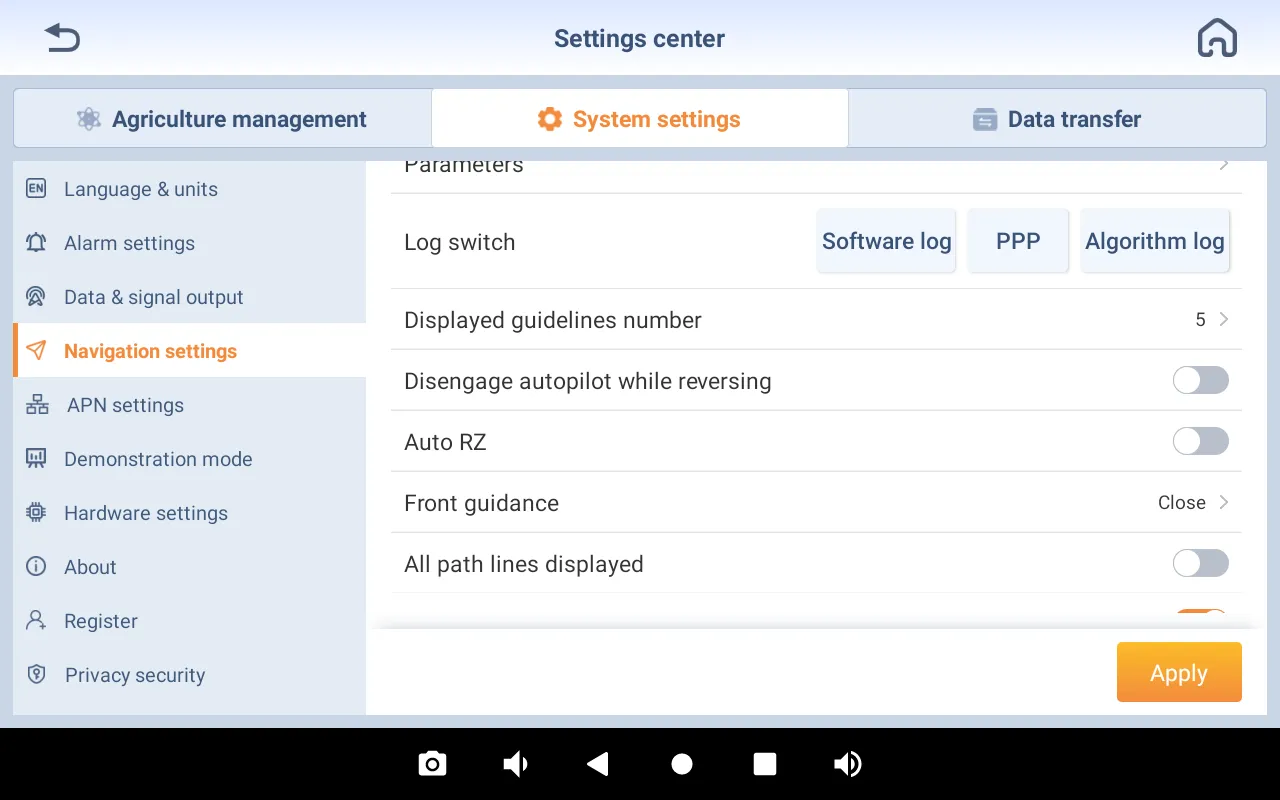

  9. Support auto RZ when engaging autosteering AgNav 5.2.1.20250912-3.png

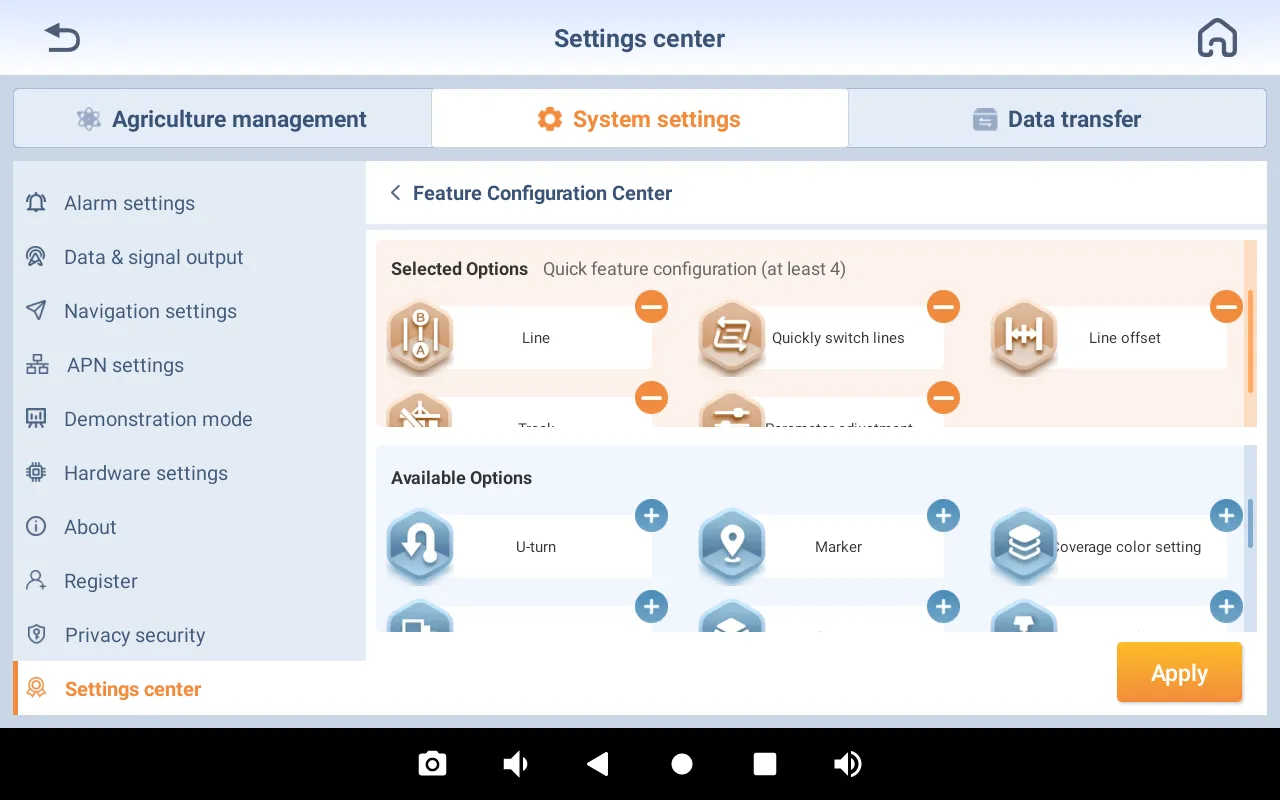

  10. Support customization of the function bar in professional mode; Pasted image 20250912220111.png

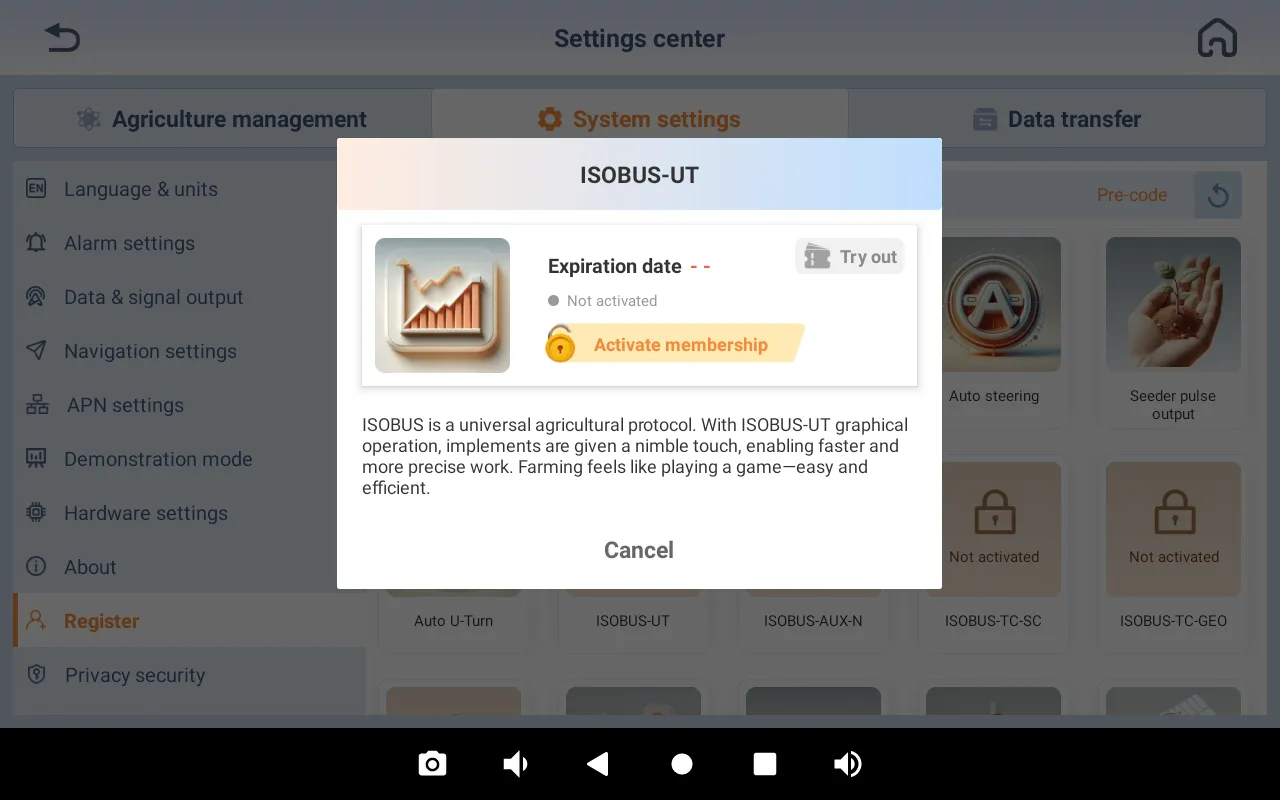

  11. Support temporary trial registration for some software functions, such as ISOBUS UT/TC/GEO/AUX-N; Pasted image 20250912220022.png

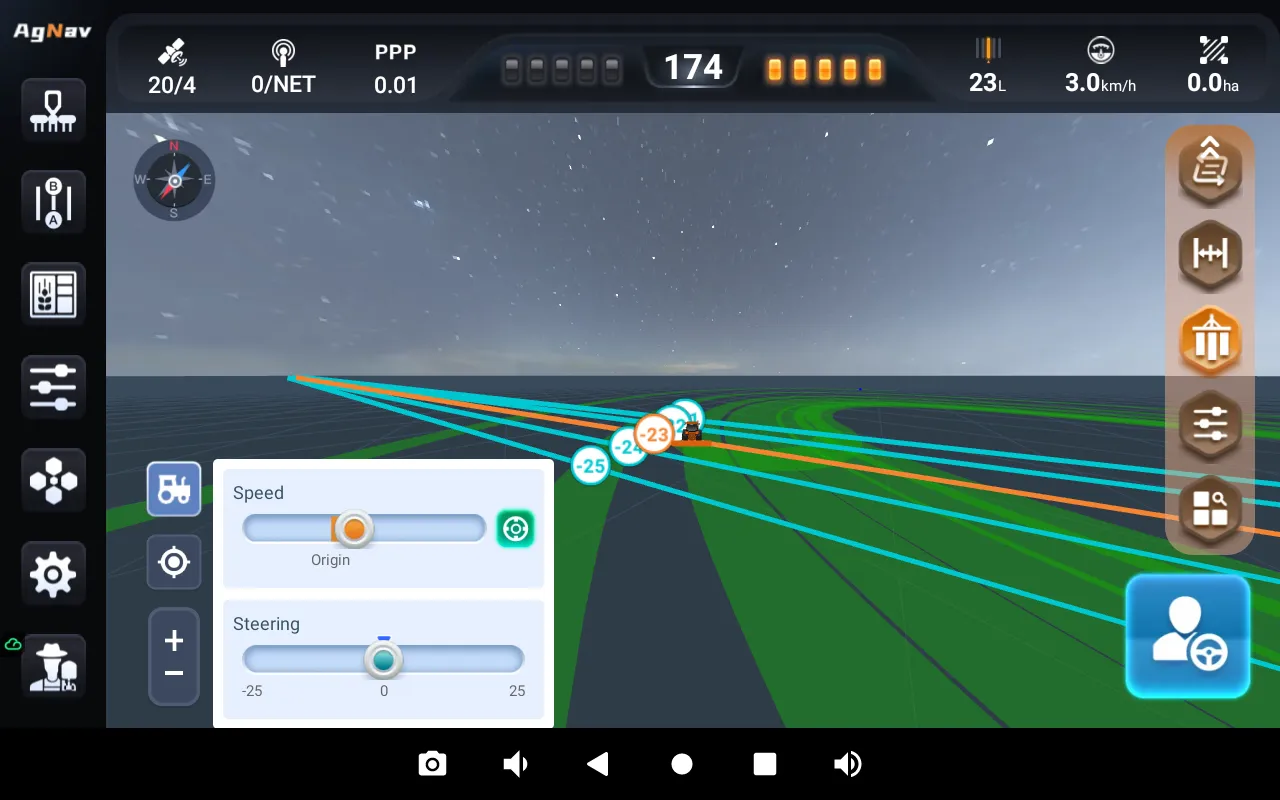

  12. Support manual steering in demonstration mode; AgNav 5.2.1.20250912-2.png
  13. Support 5V output based on implement location.

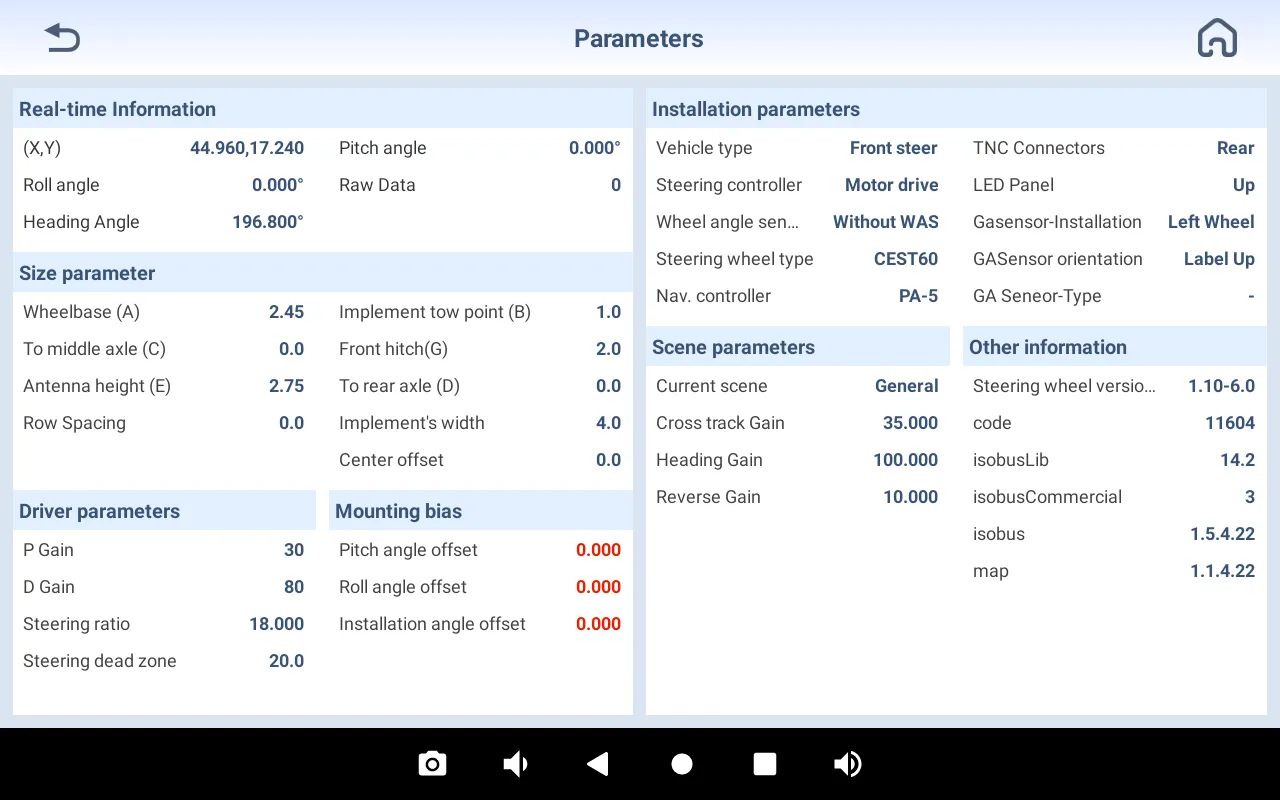

  14. Automatic highlight of abnormal values in Parameters page Pasted image 20250912215505.png

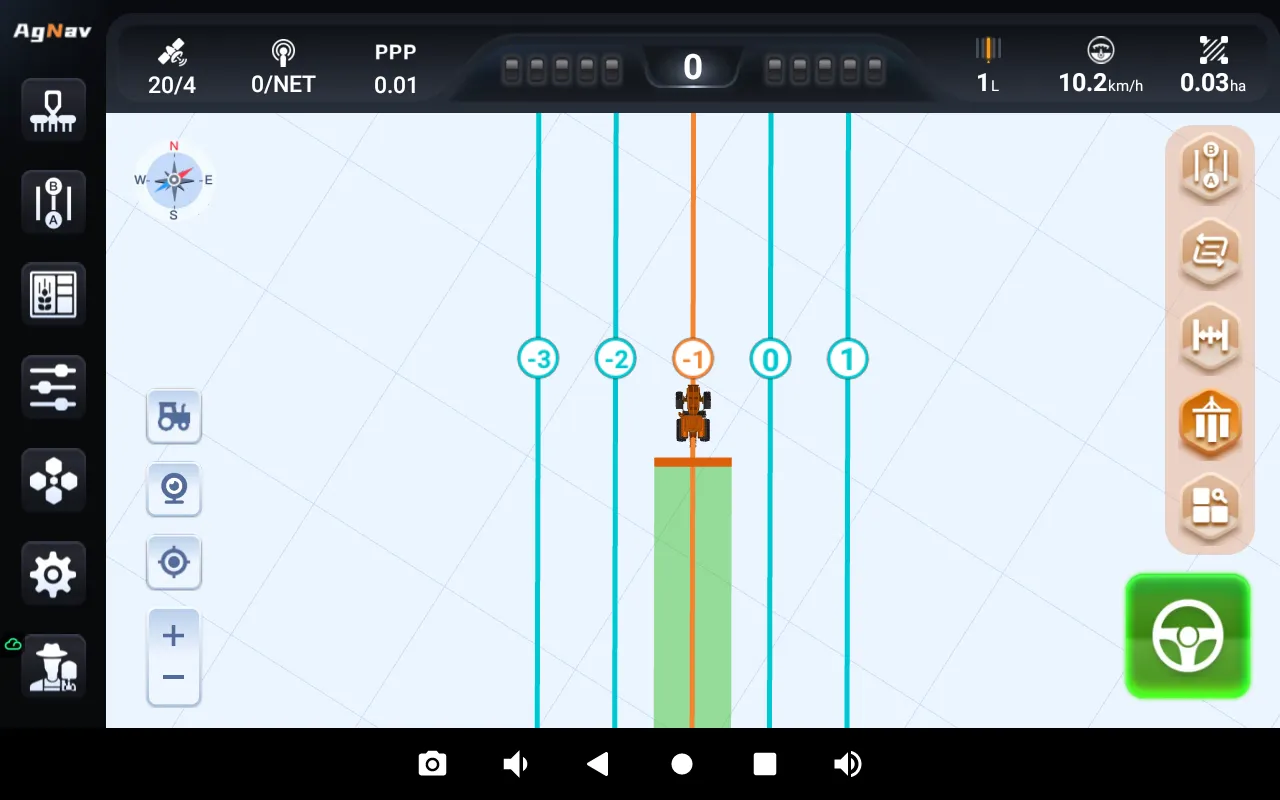

  15. Camera switch on main screen. camera switch.jpg

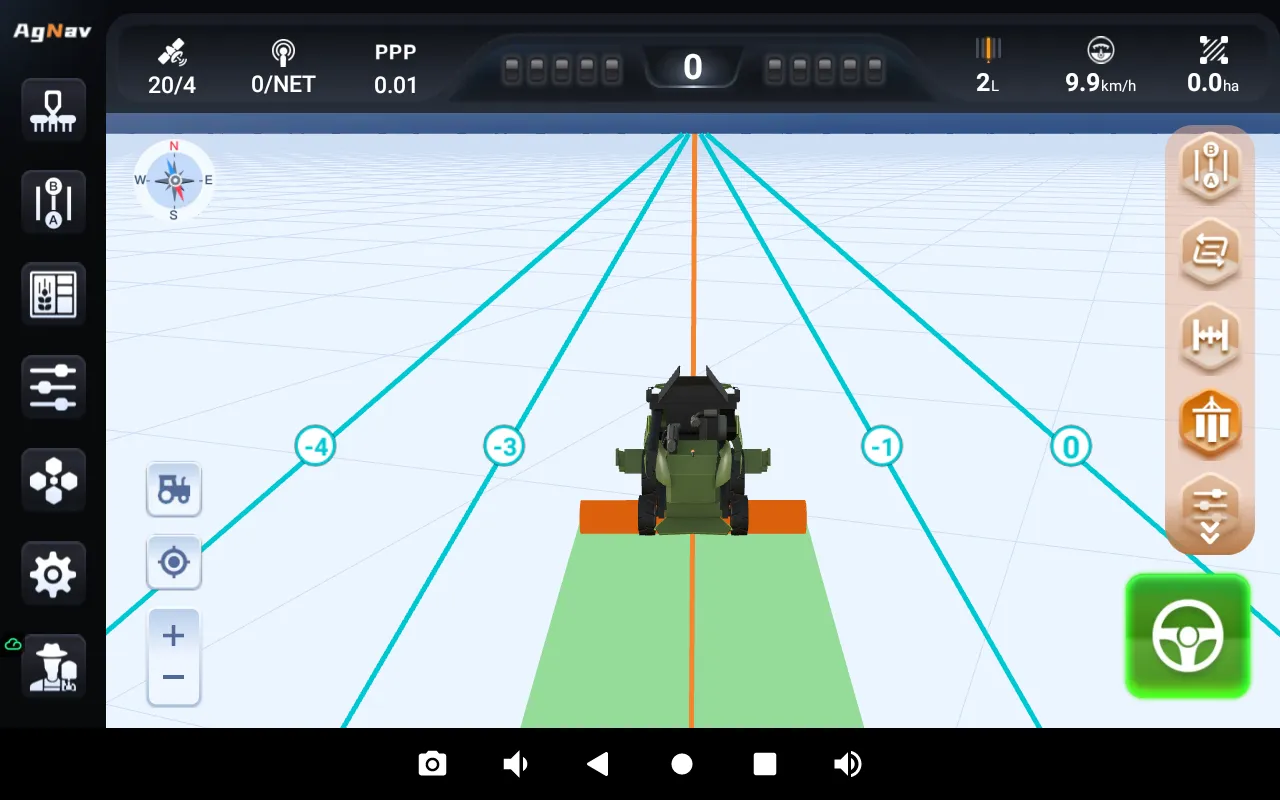

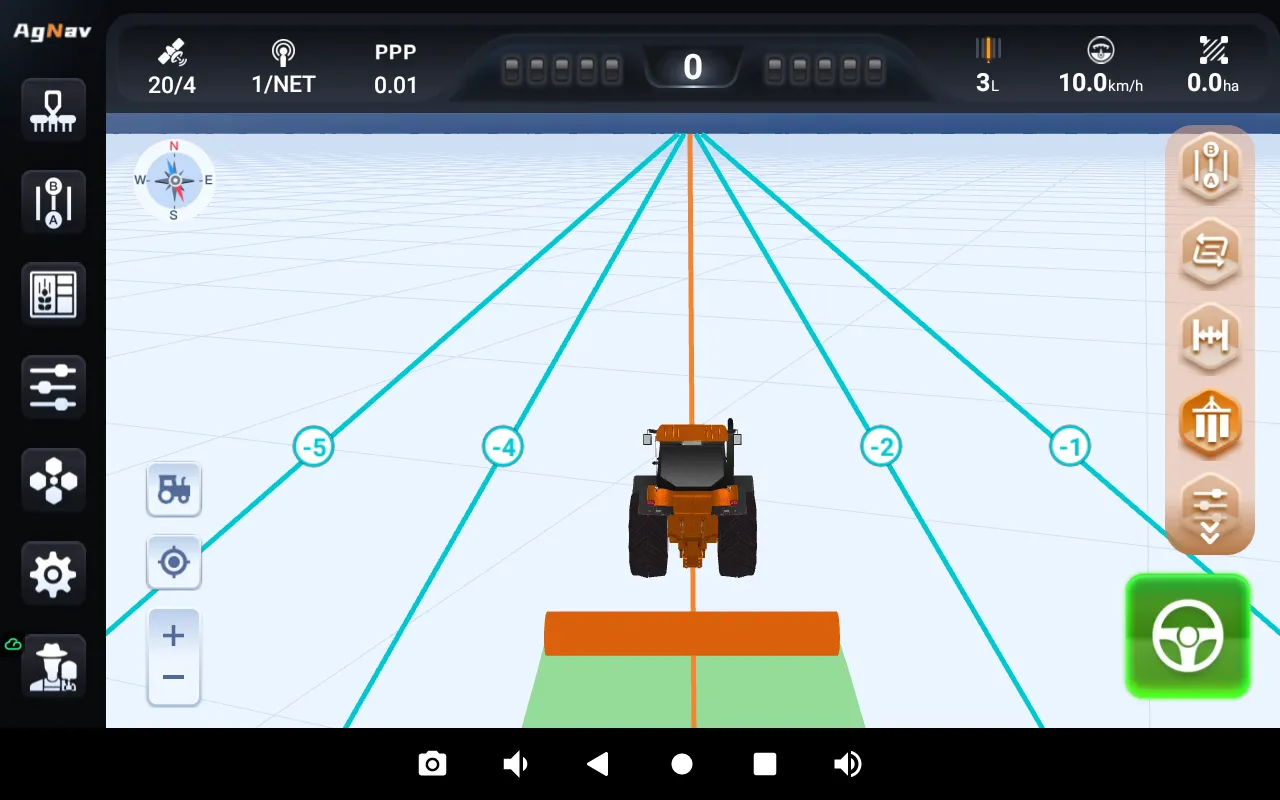

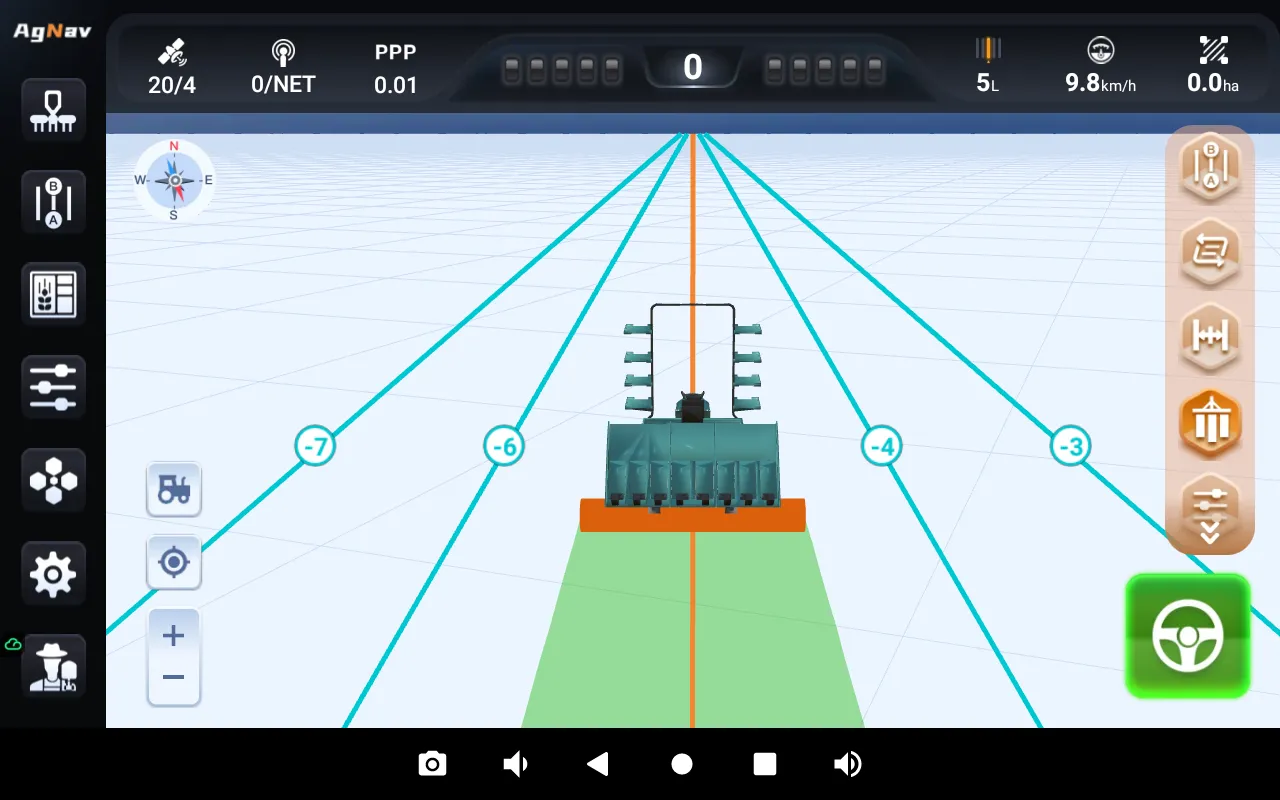

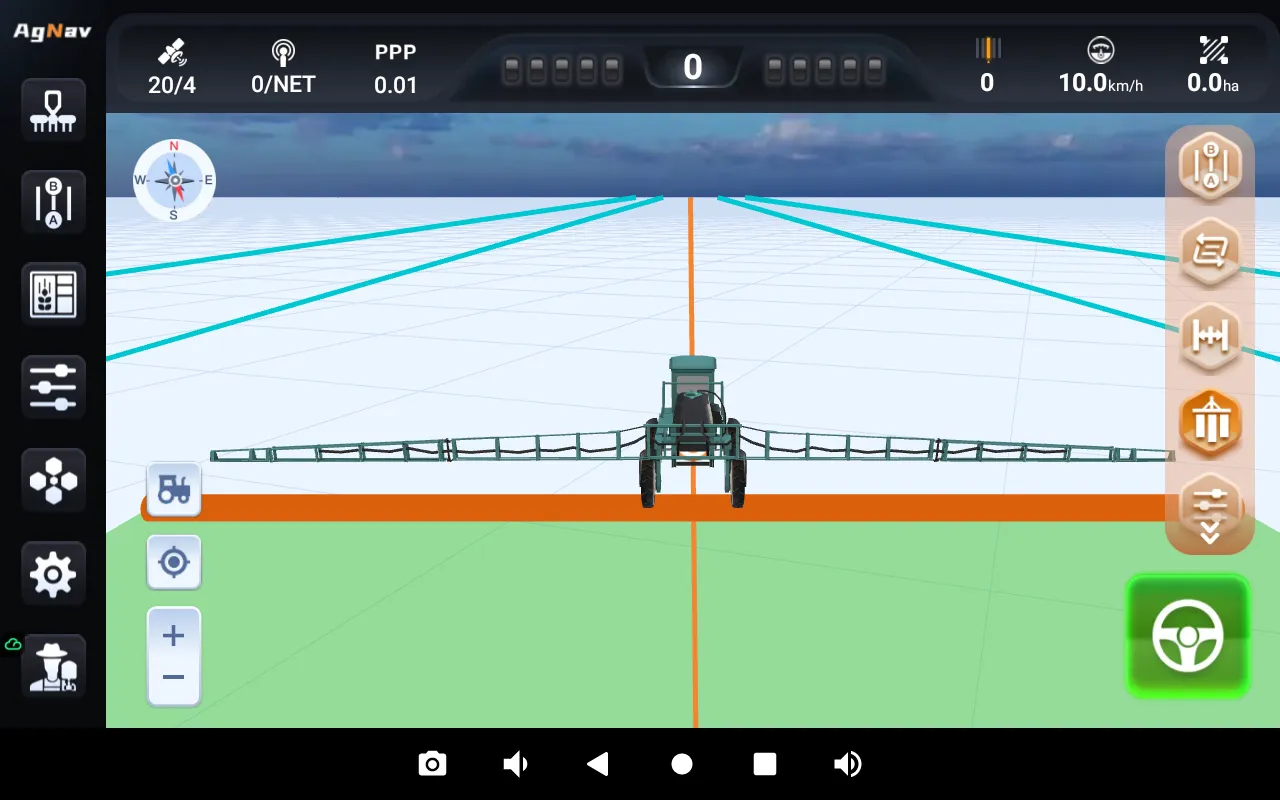

  16. New 2D and 3D vehicle models for tractors, transplanters, combine harvesters and four-wheel sprayers. AgNav 5.2.1.20250912-6.png AgNav 5.2.1.20250912-5.png AgNav 5.2.1.20250912-7.pngAgNav 5.2.1.20250912-8.png

Fixed

Section titled “Fixed”
  1. Fix the issue where saving fails after deleting boundary points;
  2. Fix the issue of slow lateral deviation refresh when exiting new line ;
  3. Fix the issue of unsynchronized position refresh between the vehicle and navigation line number during autonomous driving;
  4. Fix the issue where curve offset does not work when Access Path is enabled;
  5. Fix the issue where the full-screen keyboard fails to display the decimal point correctly;
  6. Fix the issue where the X10 tablet software shows 0 satellites;
  7. Fix the issue where the current guideline is displayed as exceeding the boundarywhen entering auto driving after boundary truncation;
  8. Fix the Hall effect issue with motor parameters when switching steering types;
  9. Fix the parameter setting issue of the mechanical angle sensor for Steer Ready vehicle models;
  10. Fix the issue of incorrect elevation display;
  11. Fix the low-probability software crash issue;
  12. Fix the unstable NMEA output signal issue for auto driving position;
  13. Optimize multilingual translations;
  14. Optimize the field list display;
  15. Optimize the selection of units;
  16. Optimize the GBM feature;
  17. Optimize 3D model;
  18. Optimize line offset layout;
  19. Optimize SprayX100/HG100/VG100 layout;
  20. Optimize 360 camera calibration;
  21. Optimize FMS status display;
  22. Optimize camera option location and move to the main screen.
